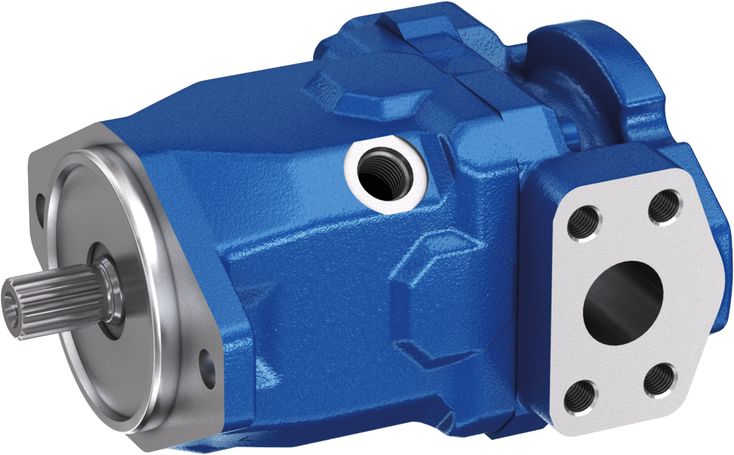

A10FZO series 10

Suitable for variable-speed operation with synchronous and asynchronous motors.
Size 6 … 63.
Nominal pressure 315 bar.
Maximum pressure 350 bar.
Open circuit.

Quantity:
Availability:





Inquire Add to Basket

For use in single- and double-quadrant operation
Suitable for start/stop-operation
Suitable for long pressure retention operation
Well-tried A10 rotary group technology
Through drive possibility
High total efficiency
Swashplate design

Table of values

Size				6	8	10	11	14	16	18	21	23	28	37	45	58	63
Displacement geometric, per revolution		V_g	cm³	6	8.1	10.6
Nominal pressure		p_nom	bar	315	315	315	315	315	315	315	315	315	315	315	315	315	315
Maximum pressure		p_max	bar	350	350	350	350	350	350	350	350	350	350	350	350	350	350
Maximum speed ¹⁾		n_nom	rpm	3600	3600	3600
Flow	at n_nom	q_V	l/min	21.6	29	38.2
Power	at n_nom and p_nom	P	kW	11.3	15.3	20
Torque	at p_nom	M	Nm	30	40.5	53
Weight (approx.)		m	kg	8.4	8.4	8.4

¹⁾	These values are valid at an absolute pressure of 1 bar in suction port S and for the optimum viscosity range ν_opt

Size	6	8	10	11	14	16	18	21	23	28	37	45	58	63
Displacement geometric, per revolution		V_g	cm³	6	8.1	10.6
Nominal pressure		p_nom	bar	315	315	315	315	315	315	315	315	315	315	315	315	315	315
Maximum pressure		p_max	bar	350	350	350	350	350	350	350	350	350	350	350	350	350	350
Maximum speed ¹⁾		n_nom	rpm	3600	3600	3600
Flow	at n_nom	q_V	l/min	21.6	29	38.2
Power	at n_nom and p_nom	P	kW	11.3	15.3	20
Torque	at p_nom	M	Nm	30	40.5	53
Weight (approx.)		m	kg	8.4	8.4	8.4
