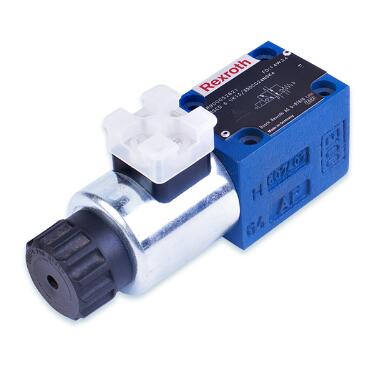

4WE10D5X/HG24N9K4/M
Rexroth
4WE10D5X/HG24N9K4/M
Size 10
- Component series 5X
- Maximum operating pressure 350 bar [5076 psi]
- Maximum flow 160 l/min [42.3 US gpm]
Features
- 4/3-, 4/2- or 3/2-way version
- Porting pattern according to ISO 4401-05-04-0-05 and NFPA T3.5.1 R2-2002 D05
- High-power solenoid, optionally rotatable by 90°
- Electrical connection as individual or central connection
- Cartridge optionally equipped with PWM connector (fast switching amplifier, energy reduction)
- Manual override, optional
- CE conformity according to the Low Voltage Directive 2006/95/EC for electrical voltages > 50 VAC or > 75 VDC
- Solenoid coil with UR approval UL 429
